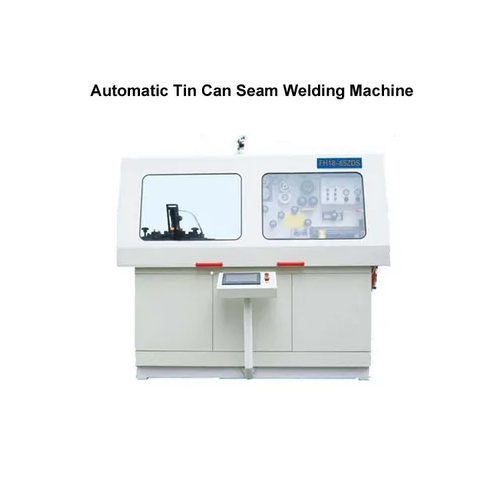

Semi automatic tin can body seam welding machine

Name: Semi automatic tin can body seam welding machine
Brand: Jiujiang Sunrise Machinery Co., Ltd
Price: 17000.0 USD
Availability: InStock

Price 17000.0 USD ($)/ Unit

Get a Price/Quote

MOQ : 1 Unit

Semi automatic tin can body seam welding machine Specification

Weight
Approx. 950 kg

Cooling Method
Water Cooling

Efficiency
Up to 90 pcs/hr

Rod Diameter
Not Applicable (Roller Electrodes Used)

Welding Area
Suitable for cylindrical tin cans (diameter 50-300 mm, height 60-420 mm)

Voltage
220/380 V

Input Current
Max. 42 A

Usage
Industrial Tin Can Body Seam Welding

Insulation Grade
F

Arc Current
1200-2500 A (adjustable)

Output Current
Adjustable 1200-2500 A

Motor Type
AC Induction Motor

Dimension (L*W*H)
2150*800*1900 mm

Function
Seam Welding of Tin Can Bodies

Type
Semi Automatic Tin Can Body Seam Welding Machine

Pulse Frequency
15-30 ms/pulse

Condition
New

Power
8 kVA

Frequency
50/60 Hz

Material
Mild Steel / Stainless Steel

Electrode Wheel Size
160 mm diameter x 24 mm width

Noise Level
80 dB

Compressed Air Required
0.50.7 MPa

Production Speed
Up to 90 cans per hour

Operating Temperature
5C to 40C

Compatibility
Round and Non-Round Tin Can Bodies

Operator Interface
Push Button and Digital Display Panel

Maximum Sheet Thickness
0.4 mm

Min. & Max. Can Height
60 mm to 420 mm

Min. & Max. Can Diameter
50 mm to 300 mm

Electrode Material
Copper Alloy Roller Electrodes

Control System
Semi Automatic PLC Controlled

Water Pressure Required
0.20.4 MPa

Seam Weld Width
36 mm

Semi automatic tin can body seam welding machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Shanghai

Payment Terms
e, d, i, t, , C, r, [, ', L, e, t, t, e, r, , o, f, a, t, , i, g, h, t, , (, , S, S, i, g, h, t, , L, /, C, T, e, ), ', ,, , ', l, e, g, r, a, p, h, i, c, , T, r, a, n, s, f, e, r, , (, T, /, T, ), ', ]

Supply Ability
100 Units Per Year

Delivery Time
60 Days

Sample Available
No

Main Export Market(s)
', ,, ', A, s, ', d, d, s, ', ,, ', A, ', South America, Western Europe, Eastern Europe, North America, Australia, Middle East, Africa, Central America, Asia

Main Domestic Market
[, l, ', A, l, , I, n, d, i, ', a, ]

About Semi automatic tin can body seam welding machine

Semi automatic tin can body seam welding machine

Model:	FB2000-A	FB2000-B
Power:	3N380V/50HZ----15KVA
Welding speed:	12m/min
Capacity:	20-50cans/min
Diameter:	65-300mm	52-170mm
Height:	70-400mm	70-300mm
Overlap:	0.6-1.2mm	0.4-1.0mm
Thickness:	0.2-0.4mm	0.18-0.35mm
Copper wire:	1.5-1.7mm
Cooling water:	0.3Mpa 8-10L/min
Net Weight:	1300kgs
Dimension:	1350x1300x1700mm

We supply both automatic and semi automatic tin can making lines.

Our main products are:

1-5L round can line;
1-4L rectangular can line;
10-20L conical pail can line;
18-20L square can line;
Aerosol can line;
Lock seaming can line

Superior Seam Welding Performance

Engineered for reliability and efficiency, this seam welding machine delivers output speeds of up to 90 cans per hour. The adjustable arc current and seam weld width ensure robust, leak-proof seams on mild steel and stainless steel cans. Its water cooling system maintains optimal electrode performance during prolonged operation, enhancing weld quality and machine longevity.

Advanced Control and User Interface

The machine features a semi-automatic PLC system with a digital display panel, offering intuitive and precise control over all welding parameters. The operator interface includes both push buttons and digital controls, simplifying setup and adjustment. This ensures consistent results and minimizes operator error, maximizing productivity and safety in industrial environments.

Versatility and Adaptability

Supporting both round and non-round can bodies, this welding machine accommodates a wide range of tin can designs commonly used in food and chemical industries. The unit is compatible with various sheet thicknesses and sizes, making it a versatile solution for manufacturers, distributors, and exporters with diverse production needs.

FAQ's of Semi automatic tin can body seam welding machine:

Q: How does the semi-automatic tin can body seam welding machine operate?

A: This machine uses a semi-automatic PLC control system that manages the welding process. Operators set parameters using the push button and digital display panel, after which the copper alloy roller electrodes create a continuous seam weld along the can body, ensuring robust joints for both round and non-round cans.

Q: What is the process for changing can sizes on this welding machine?

A: To switch can sizes, you adjust the machine's settings, such as can diameter, can height, and seam weld width, using the digital control interface. The system is designed for rapid setup to accommodate can diameters from 50 mm to 300 mm and heights from 60 mm to 420 mm.

Q: When should water and air pressure be checked or maintained?

A: Before each production run, water pressure (0.2-0.4 MPa) and compressed air pressure (0.5-0.7 MPa) should be verified to maintain optimal cooling and welding performance. Routine checks help prevent overheating and ensure consistent weld quality.

Q: Where can this seam welding machine be installed?

A: The seam welding machine can be installed in industrial production lines, factories, or workshops that manufacture tin cans for food, chemical, or other industries. It requires a stable power supply (220/380 V), proper ventilation, and water-cooling connections within the recommended operating temperature range of 5C to 40C.

Q: What types of materials and cans is the machine compatible with?

A: The machine is suitable for welding mild steel and stainless steel can bodies, with a maximum sheet thickness of 0.4 mm. It supports cylindrical and non-round can designs within the specified diameter and height range.

Q: How does using this machine benefit production operations?

A: Utilizing this semi-automatic seam welding machine increases efficiency with a production capacity of up to 90 cans per hour. Its PLC control system ensures precise, repeatable welds, reducing material waste and operator error while boosting throughput and product consistency.
